What is the relationship between thermal expansion and glass bottle bursting?

A bottle can look perfect, then fail like a “burst” with no warning. Most of the time the trigger is not one big force. It is two forces stacking at the same weak point.

Thermal expansion relates to bursting because uneven expansion creates tensile stress. When that thermal stress combines with internal pressure (or strong vacuum cycles), the total tensile load can exceed glass strength and cause sudden breakage.

Bursting is usually a stress-stack event, not a single cause

Glass bottles rarely explode from uniform heating alone. They fail when stress becomes concentrated at a flaw. Thermal expansion contributes by creating stress from temperature gradients. Internal pressure contributes by adding tensile hoop stress ¹. Design features contribute by amplifying stress concentration. Annealing ² and surface damage decide how much margin is left.

A “burst” event can happen in several situations:

• hot-fill with aggressive cooling and a brief pressure spike

• carbonation or nitrogen dosing with high internal pressure

• pasteurization/retort cycles where pressure and heat change together

• packaging lines where bottles are cold, then locally heated (label tunnels) and pressurized

The mechanism is consistent. Stress becomes tensile at a local weak point. A microcrack grows rapidly. The bottle fails suddenly, often with multiple fragments. Operators describe this as bursting because it is fast and loud.

The three ingredients that show up in most bursts

1) Temperature gradient across the glass thickness or around the circumference

2) Internal pressure (positive pressure from product gas or process)

3) Crack starter (scratch, scuff, stone, cord, sharp radius, residual stress)

If any one of those is missing, the bottle usually survives.

The next sections answer your questions: how gradients create tensile stress, how pressure and vacuum combine with thermal stress, which bottle designs are most prone, and which validation tests predict risk before mass production.

How do uneven thermal expansion and temperature gradients create tensile stress that triggers sudden bottle breakage?

The core physics is simple: one part of the glass wants to change size, another part resists. The result is tensile stress, and glass fails in tension.

Uneven thermal expansion creates tensile stress when temperature is not uniform across the bottle wall or around the circumference. The hot zone expands first, the cool zone restrains it, and local tensile stress forms at transitions and flaws. When stress exceeds local strength, cracks propagate rapidly and cause sudden breakage.

Through-thickness gradients: hot inside, cool outside

In hot-fill ³, the inner wall heats first. If the outside is cooled fast (cold rinse, cold air, cold conveyor contact), the outer wall remains cool and stiff while the inner wall is hot and expanding. This can put one surface in tension. The heel is a common origin because it is thick and cooled by contact.

Around-the-circumference gradients: one side heats or cools more

If one side of the bottle is cooled by a strong jet or touched by a cold guide rail, that side shrinks faster. The bottle becomes unevenly stressed and can crack on the “cold side.” This often looks like random breakage but usually traces to airflow or contact imbalance.

Why a “burst” can happen instead of a slow crack

A small crack can grow slowly, or it can run fast. Fast crack growth happens when:

• the stress is high,

• the crack starter is sharp (scratch or inclusion),

• the glass is already stressed from annealing,

• pressure adds extra tensile load.

Once a crack reaches a critical length under high stress, crack propagation ⁴ becomes rapid. The result feels like an explosion even if internal pressure is moderate.

Thermal gradients are the root of thermal stress. Pressure and vacuum decide how close the system is to the failure edge.

When does internal pressure or vacuum (from hot-fill cooling or carbonation) combine with thermal stress to increase bursting risk?

Pressure adds hoop stress. Vacuum adds panel load and can change closure sealing. The risk increases when pressure or vacuum peaks happen at the same time as strong thermal gradients.

Bursting risk rises when internal pressure peaks during heating (gas expansion, dosing, CO₂ release) or when thermal gradients are strongest and the bottle is already in tension. Vacuum after hot-fill cooling can also contribute by keeping tensile stress active and by pulling the closure seal, which can create leak paths or stress shifts.

High pressure + hot glass = low safety margin

Internal pressure increases tensile hoop stress in the bottle wall. If the bottle is also experiencing thermal tensile stress, the combined stress can exceed local strength. This stacking is most dangerous when:

• carbonation pressure is high

• temperature is high (because pressure rises with temperature)

• the bottle has flaws or scuffs

• thickness is uneven (stress concentrates locally)

Pressure spikes during line events

Even non-carbonated products can see pressure spikes:

• trapped air expansion during heating

• nitrogen dosing events

• filling turbulence and headspace behavior

• retort pressure cycles

If a pressure spike happens while the outside is being cooled fast, the heel and lower body can be pushed into a higher tensile state.

Vacuum during cooling: not a “burst” driver, but a crack growth driver

Vacuum usually pulls inward. It can cause paneling in lightweight bottles. It also increases compressive load in some areas, but it can keep stress fields active and can grow microcracks in vulnerable zones when combined with handling and vibration. Vacuum also tests the closure seal ⁵. A weak seal can admit air, losing vacuum and changing internal pressure dynamics over storage.

Carbonation: the high-risk combination

Carbonated beverages ⁶ create sustained internal pressure. If a carbonated bottle is heated (warehouse heat, pasteurization, or warm filling), pressure increases. If that happens together with thermal gradients (rapid cooling or uneven heating), bursting risk rises sharply.

A safe program controls both the thermal ramps and the pressure peaks so they do not overlap at their worst values.

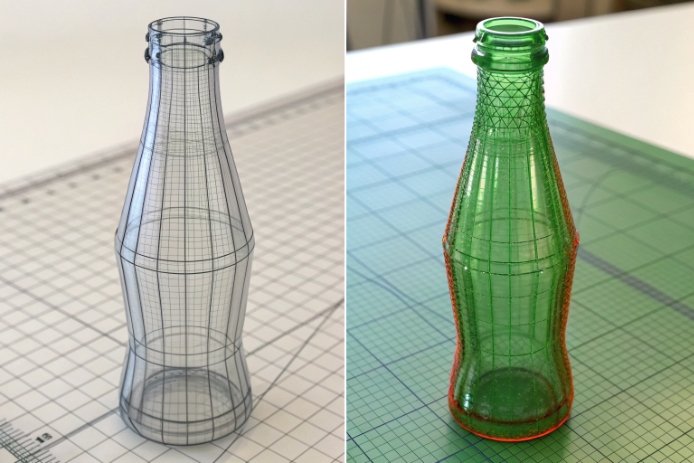

Which bottle designs are more prone to bursting under heat (thick base, sharp transitions, non-uniform walls), and how can you improve them?

Design does not create pressure, but it decides where stress concentrates. Bursting tends to originate at the weakest stress hotspot, not at the “average” wall.

Bottles with thick bases, sharp heel or shoulder transitions, narrow radii, and non-uniform wall thickness are more prone to bursting under heat because they create larger thermal gradients and higher stress concentration. Improvements include smoother radii, reduced thickness steps, better wall distribution, and finish geometry that supports stable closure load.

Thick base: slow equalization, strong gradients

A heavy base is a cold anchor. It holds thermal gradients ⁷ longer during heat-in and cool-down. The heel becomes the crack starter zone. If internal pressure is present, the heel crack can run fast and look like a burst.

Improve it by:

• reducing base mass where possible

• smoothing heel radius and base corner radius

• designing push-up transitions with gradual thickness change

• reducing cold contact points under the base during hot operations

Sharp transitions: stress multipliers

Sharp geometry multiplies tensile stress under both thermal and pressure loads. A small radius can cut the safety margin dramatically.

Improve it by:

• increasing radii at shoulder and heel

• removing abrupt thickness steps

• avoiding deep embossing in high-heat zones

• keeping label bands away from sharp transitions if heat tunnels are used

Non-uniform walls: uneven hoop stress under pressure

Under internal pressure, thin zones carry more stress. If the wall is uneven, stress concentrates at the thinnest region. Add thermal gradients and the failure threshold drops.

Improve it by:

• controlling parison distribution

• tightening cavity-to-cavity wall thickness ⁸ variation

• setting a maximum ovality limit in finish and body

• mapping thickness hot spots and correcting tooling

A design that is friendly to hot-fill is usually friendly to burst risk too, because it reduces local tensile peaks. Even small geometry changes can deliver large reliability gains.

What validation tests help predict burst risk (thermal shock, internal pressure, stress inspection, and line simulation)?

Burst risk is best predicted by testing the same stress stack the bottle will see in real life: thermal gradients plus pressure, on the worst bottle conditions.

Predict burst risk with a combined validation plan: thermal shock testing for gradient tolerance, internal pressure tests for hoop stress margin, polariscope stress inspection for annealing quality, and full line simulation that replicates hot-fill, cooling, and pressure/vacuum behavior.

1) Thermal shock tests (baseline gradient tolerance)

Use a container thermal shock ⁹ method to rank designs and batches. This identifies which designs have low gradient margin. It also helps detect annealing drift. Thermal shock tests should be run on:

• multiple cavities

• worst-case thick-base variants

• bottles with typical line scuffing if that is realistic

2) Internal pressure tests (burst and proof pressure)

Pressure testing confirms hoop stress margin. Good practice includes:

• proof pressure tests (below burst) for repeatability

• burst pressure tests for design margin

• tests at relevant temperatures if pressure changes with heat

Pressure tests are most useful when combined with thickness mapping, because failures often correlate with local thin zones.

3) Stress inspection (annealing quality)

A polariscope ¹⁰ check is a fast gate. High residual stress means the thermal shock and pressure margins are lower. Track by cavity and time. Many “burst clusters” come from one cavity with poor stress control.

4) Line simulation (the closest predictor)

Line simulation should reproduce:

• bottle start temperature

• fill temperature and dwell

• cooling steps and timing

• pressure/vacuum profile

• worst-case stop-start events

This is where burst-like failures show up if the stack is real. It also reveals whether the base contact cooling is too aggressive.

A strong validation plan always includes worst-case sampling. If tests only use “best-looking” bottles, burst risk is underestimated.

Conclusion

Thermal expansion drives bursting risk by creating local tensile stress from temperature gradients. When pressure peaks stack on those hotspots, bottles can fail suddenly. Design smoothing, strong annealing, staged cooling, and combined thermal+pressure validation prevent bursts.
