What Fining Agent Dosage Should Be Controlled in Glass Bottle Production?

Bubble complaints can ruin a whole shipment. The worst part is the timing. The defect often shows up after packing, not during forming.

Fining dosage must be controlled because it decides how many seeds and blisters survive into the bottle. The right dosage depends on your fining system, redox, cullet ratio, pull rate, and furnace temperature profile.

Control dosage as a “gas balance” across the whole furnace

Define dosage in two units, or you will fight about numbers

Most plants talk about fining dosage as “% additive in the batch.” Many labs talk about it as residual in the glass ¹ (for sulfate fining, that is often reported as SO₃ in the glass). Both views are correct, but they answer different questions.

Batch dosage answers: “How much fining chemical ² did we feed today?”

Residual answers: “How much fining chemistry stayed dissolved and can still influence bubbles, redox, and defects?”

This matters because retention is not stable. Cullet moisture, pull rate, furnace atmosphere, and sulfate carryover all change how much of the fining agent stays in the melt. A plant can hold the same batch dosage and still get a different seed rate. The glass is telling you that the effective fining level changed.

A clean control plan sets:

• a batch dosage window (what operators can adjust)
• a residual window (what QA can verify)
• a process window (temperature profile and pull rate limits)

Start with a process window, then tune dosage

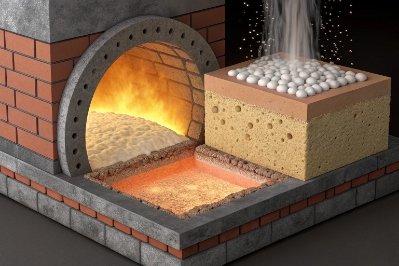

Fining is not a “more is better” chemical. It is a timing tool. The fining reaction must happen while viscosity is low enough for bubbles to grow and rise. If the furnace is cold or the residence time ³ is short, fining looks weak even if dosage is high. If the furnace is hot and residence time is long, a lower dosage can still give clean glass.

This is why dosage control should sit in the same document as:

• furnace hot-spot and fining zone temperature targets
• pull rate limits by SKU
• cullet percentage rules
• redox targets for the color family (flint vs green vs amber)

Put dosage into change control, not daily guessing

A stable plant uses pre-set correction rules. A shift team should not “feel” the dosage. The team should adjust dosage only when a trigger is hit, like a seed-count trend, a redox drift, or a cullet change.

A good dosage program is a balance: enough gas action to clear seeds, but not so much that the melt becomes unstable.

The next sections show typical starting ranges, the process factors that move the required dose, the failure modes from under- and over-dosing, and the QC checks that prove the dose is right before shipment.

What dosage range is typically used for different fining systems in bottle glass melting?

Fining dosage targets feel confusing because different plants report them in different ways. A “normal” dose can sound high in one unit and low in another.

For container glass, sulfate fining is the common baseline. Many plants control sodium sulfate as a small percent of batch while also targeting a residual SO₃ window in the finished glass. Other fining approaches are used in special glass families and are controlled by their own residual limits.

Sulfate fining in container glass: treat SO₃ in glass as the anchor

Sodium sulfate ⁴ (salt cake) is widely used in industrial glass melting. In container glass, the practical control point is often residual SO₃ in the glass, because that tracks fining strength and reboil risk better than the feeder setting alone.

A common approach is:

• set a batch addition window for Na₂SO₄ (a “knob” for operators)
• set a residual SO₃ window in glass (a “truth” for QA)

In many container recipes, SO₃ in the glass sits around a few tenths of a percent, and plants keep it inside a tighter band for stability.

Oxidizers and helpers: treat them as redox tools, not “more fining”

Nitrates are often used to improve fining by changing bubble gas chemistry toward oxygen. Still, in bottle plants they often act as redox helpers. They can reduce green drift in flint by pushing the melt more oxidizing. The dosage is usually much smaller than sulfate and must be controlled tightly because it can shift color.

Halide fining: more common in borosilicate-type families

Sodium chloride ⁵ fining is often discussed in borosilicate contexts because halide solubility is limited. The control is commonly written as residual chlorine in the glass, because too much residual can drive haze defects later in conversion processes.

Legacy oxygen fining: toxic and often replaced

Antimony- and arsenic-based fining has strong fining power, but it is widely replaced in mass container production due to toxicity and compliance pressure. If a buyer sees these on a COA, the buyer should request a compliance statement and a clear disclosure of limits.

This table gives a starting language for procurement and production. The real dose still depends on your cullet ratio, pull rate, and redox. That is why the next question matters more than the first.

Which factors (cullet ratio, furnace temperature, pull rate, redox conditions) determine the required fining agent dosage?

A plant can keep the same fining recipe and still see seed spikes. That is not bad luck. That is a process factor moving the effective dose.

Required fining dosage is set by residence time, melt temperature profile, viscosity, and redox. Higher cullet ratios can reduce melting load but can also change redox and gas release. Higher pull rates shorten fining time, so the effective dose drops unless the process window is widened.

Cullet ratio changes gas behavior and redox

Cullet often lowers melting energy because it is already glass. Still, cullet can bring:

• organics and moisture (more reducing power and more gas)
• mixed glass chemistry (different sulfate retention)
• variable fines (different batch blanket behavior)

A higher cullet ratio can reduce the need for “melting acceleration,” but it can increase fining stress if it adds gas late or shifts the melt more reducing. This is why plants often need a different fining setting for “high-cullet week.”

Furnace temperature and pull rate decide fining time

Fining is time at temperature. Pull rate increases shorten the time the melt spends in the fining zone. If the fining zone temperature also drifts down, seeds rise fast. Many plants respond by adding more fining agent. That can work, but it can also create foaming and reboil if the real issue is temperature profile, not dosage.

A cleaner approach is to treat fining dosage as a second lever. The first lever is the fining zone thermal profile and mixing.

Redox conditions control sulfate retention and color

Redox changes how sulfate behaves and how iron shifts between Fe²⁺ and Fe³⁺. A more reducing melt tends to push iron toward Fe²⁺, which can create a greener cast in flint. Redox can also change how much sulfate stays dissolved and where gas releases happen. This can convert a seed problem into a blister problem.

A good plant does not treat dosage as the only fix. Dose is adjusted after the thermal and redox window is confirmed stable.

Now it is useful to be blunt about failure modes. Under-dosing and over-dosing have different fingerprints. Recognizing them saves days.

What problems can under-dosing or over-dosing fining agents cause in bottle quality and forming stability?

Most teams fear under-dosing because seeds are visible. Over-dosing is often worse because it can destabilize the melt and create random defects.

Under-dosing usually causes higher seed counts, haze, and sparkle in thick bottle zones. Over-dosing can cause foaming, reboil blisters, cord risk from unstable refining, color drift through redox shifts, and forming instability from changing viscosity and gas release timing.

Under-dosing: the glass looks dirty and the line slows

Under-dosing means bubbles stay small. Small bubbles rise slowly. They also scatter light, so the glass looks hazy. In bottles, this often shows first in:

• the base and heel (long light path)
• thick shoulders
• heavy premium designs

Under-dosing also increases inspection rejects. Then production slows or the plant starts chasing temperature. Temperature chasing adds more variation, so defects grow.

Over-dosing: the melt becomes unstable

Over-dosing can create foaming in the batch blanket and unstable gas release. It can also shift redox and change color consistency. In a sulfate system, too much fining chemistry can increase late gas release and reboil risk, which often shows up as blisters during or after forming.

Over-dosing can also increase deposits and maintenance issues in some furnaces. This is not only a quality problem. It is a stability problem.

A simple defect “fingerprint” table for daily troubleshooting

A stable fining dose is one that clears bubbles without creating new instability. The fastest path to stability is measurement. That leads to the final question: how to verify and control fining dosage through bubble inspection and QC reports.

How can you verify and control fining dosage through bubble/seed inspection and melt quality QC reports?

Dosage control fails when it is not measured in the same way every lot. A buyer and a supplier can both be honest and still disagree because they sampled different zones.

Verify fining dosage by linking three data sets: (1) chemistry (batch addition and residual SO₃), (2) bubble quality (seed and blister counts in defined zones), and (3) shipment inspection (AQL sampling with clear defect categories).

Use a “seed map” that matches how customers judge bottles

A seed count from one thin panel is not enough. Many customers judge the base and heel. So the QC method should define:

• the bottle zones to inspect (finish, panel, heel, base)
• the viewing conditions (light box, distance, time)
• the defect size language (seed vs blister thresholds)

A plant can use automated inspection, but the acceptance rules must still be written. A good report shows seed and blister trends by zone.

Tie seeds to residual fining chemistry, not only to feeder settings

Operators change feeder settings. QA needs proof that the melt chemistry stayed inside range. For sulfate systems, a residual SO₃ check can explain why “same setting” produced different results. If residual SO₃ rose, retention changed. If residual SO₃ dropped, fining capacity dropped. This helps the team fix the real root cause, not the symptom.

Use acceptance sampling ⁷ and retain samples for every lot

Bulk orders need an inspection plan. Many teams use acceptance sampling plans such as ISO 2859-1 to set sample size and acceptance limits. The defect list should separate:

• critical defects (safety and leakage risk)
• major defects (appearance and function)
• minor defects (cosmetic)

Retained samples matter because bubble claims often arrive after transit.

A “melt quality QC report” becomes powerful when it is short, repeatable, and linked to actions. The report should include a simple rule set, like:

• If base seed count rises above the control limit, pause dose changes and confirm fining-zone temperature and redox first.
• If blisters appear, check reboil triggers and sulfate retention before adding more fining agent.
• If color drifts with bubble defects, treat it as a redox event, not a fining-only event.

This is how fining dosage control stays stable at scale, even when cullet and pull rate change.

Conclusion

Control fining dosage with two anchors: batch feed and residual markers in glass. Then verify with zone-based seed inspection and ISO-style sampling so bulk shipments stay clear and consistent.
