Are thick-bottom glass bottles more resistant to temperature differentials?

Thick-bottom bottles look stronger in hand. Many brands assume they will handle hot-fill or fast cooling better. Then heel cracks show up and the team feels confused.

Not always. A thick bottom can improve mechanical stability and premium feel, but it often increases thermal gradients and can raise cracking risk during hot-fill and cool-down unless the heel geometry, thickness transitions, and annealing stress are controlled.

Thick-bottom does not mean thermal-safe

A thick base changes how heat moves through the bottle. Thermal shock failures are driven by temperature mismatch and gradients, not by how “strong” the bottle feels, which is why comparative methods like the ASTM C149 thermal shock resistance test for glass containers ¹ exist. Thick glass heats and cools more slowly because of heat-transfer limits tied to thermal diffusivity in solids ². That creates bigger inside-to-outside differences for longer time. The base is also a contact cooling zone because it touches starwheels and conveyors, and even small changes in clamping starwheel contact mechanics ³ can shift where the cold anchor effect is strongest. So the thick base can become a cold anchor while the inner wall is hot.

Thick-bottom bottles also often have:

• deeper push-up structures
• sharper thickness steps at the heel band
• larger stress concentration at the base corner
• higher chance of residual stress if annealing is not tuned for thicker mass, as described in annealing lehr behavior and residual stress formation ⁴

So a thick-bottom bottle can survive drops better but crack sooner under a temperature differential.

A thermal-safe bottle is defined by:

• uniform thickness distribution
• smooth transitions and radii
• low residual stress
• controlled hot-fill cooling curve

Those factors can outperform “more thickness.”

Now the detailed answers to your four questions.

Why can a thick base increase thermal gradients and raise cracking risk even if the bottle feels “stronger”?

Strength in hand is about stiffness and impact feel. Thermal cracking is about temperature mismatch and tension.

A thick base increases thermal gradients because it slows heat transfer and stays cooler (or hotter) longer than the sidewall. During hot-fill, the inside surface heats quickly while the outer base remains cooler due to contact cooling. During cooling, the outer base chills first while the inner base remains warm. These gradients create tensile stress at the heel and base corner, raising crack risk.

The base is a cold anchor during hot-fill

In hot-fill, the hot product heats the inner wall first. The base is thick and is often cooled by conveyors. The outer base stays cooler and stiffer. The inner layer wants to expand, the outer layer resists, and tension forms where geometry changes—usually at the heel radius—while the glass itself is expanding according to the soda-lime glass coefficient of expansion ⁵.

The base is a stress hinge during cooling

After filling, cooling can reverse the gradient. If the outside is cooled quickly, the outer layer shrinks first while the inside is still warm. That produces tensile stress at the surface. If a heel scuff or microchip exists, a microcrack can grow into a visible base check.

Why thick-bottom designs amplify stress concentration

Many thick-bottom premium designs use a deep push-up. That creates thickness steps and ring lines. Those steps behave like hinges where thermal strain focuses, and sharper transitions raise peak stress the same way notch effects rise in stress concentration factor tables ⁶.

So “more thickness” can reduce some mechanical risks, but it can raise thermal-shock risk if the line uses hot-fill and rapid cooling.

Which designs improve temperature-difference resistance without adding excessive base thickness (push-up shape, heel radius, uniform walls)?

Thermal resistance improves when gradients are smaller and stress concentration is lower. That is mostly a geometry and uniformity job.

Improve temperature-difference resistance by smoothing the push-up profile, increasing heel and base corner radii, and keeping thickness transitions gradual and uniform around the circumference. A moderate base with uniform distribution often performs better than an overly thick base with sharp steps.

Push-up shape: gentle, gradual, and symmetric

Better push-up features:

• gradual slope transitions (no sharp step lines)
• uniform thickness around the push-up ring
• reduced local thick “lumps”
• stable forming that avoids eccentric push-up profiles

A push-up is not the enemy. A sharp push-up step is.

Heel radius: a high ROI change

The heel is where most thermal cracks start. A larger, smoother heel radius:

• reduces stress concentration
• reduces sensitivity to scuffs
• improves tolerance to gradients

Uniform walls and balanced thickness

Uniform thickness:

• reduces circumferential imbalance
• reduces one-side cracking
• reduces hinge effects at the heel band

Practical steps:

• control gob temperature and weight
• improve parison distribution
• maintain mold alignment and wear

Also note the basic physics trend: as thickness increases, heating inertia and through-thickness gradients rise, as shown in studies of thickness-driven temperature gradients in glass under heating/cooling ⁷.

This approach gives thermal resistance without paying the weight penalty and without increasing furnace energy demand.

How do annealing quality and residual stress determine whether a thick-bottom bottle survives hot-fill cooling cycles?

A thick base needs more time and correct lehr tuning to relax stress. If annealing is not adjusted, thick-bottom bottles can carry more residual stress where it hurts most.

Annealing quality determines the residual stress stored in the base and heel. A thick-bottom bottle can survive thermal cycling only if the lehr profile provides enough soak and uniform cooling for the thicker mass. Under-annealing or uneven airflow leaves tensile stress that stacks with thermal stress during hot-fill cool-down, causing base checks and heel cracks.

Why thick-bottom bottles are harder to anneal consistently

• thicker sections cool slower
• thicker sections need longer time above strain/annealing point to relax stress
• airflow imbalance affects thick bases more because gradients persist

If the lehr profile is tuned for standard bottles and thick-bottom is introduced, the base may leave the lehr with a higher stress pattern. Then the first hot-fill cool-down pushes it over the edge.

What “good annealing” looks like in practice

• low, symmetric polariscope patterns at heel and base
• low cavity-to-cavity variation
• stable trends across shifts and line speeds

If you want a standardized way to talk about what the polariscope is “measuring,” anchor your checks to the ASTM C148 polariscopic examination of glass containers ⁸.

Why residual stress creates “random” failures

Residual stress varies by cavity, lane, or time. So cracks appear random. In reality, the same one or two cavities often lead the failures.

A thick-bottom bottle can be thermal-safe, but only if annealing is validated for that mass distribution.

What thermal shock and line-simulation tests can compare thick-bottom vs. standard bottles for your filling process?

A fair comparison must match your real fill and cooling curve. A generic “thermal shock rating” helps screening, but line simulation is the real proof.

Compare thick-bottom vs standard bottles using (1) a thermal shock step test for baseline gradient tolerance, (2) hot-fill and cooling line simulation that replicates timing, rinses, and contact cooling, and (3) stress inspection and thickness mapping to connect failures to geometry and annealing.

1) Thermal shock step test (baseline screening)

Use a controlled ΔT step test to:

• rank designs
• detect drift across cavities
• compare mold sets

Make sure both bottle types are tested with the same sample plan across cavities.

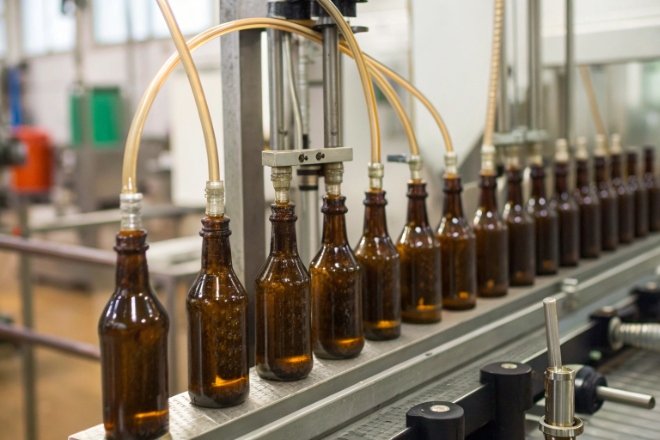

2) Hot-fill + cooling simulation (most predictive)

A strong simulation includes:

• bottle start temperature (include cold-start worst case)
• fill temperature and hold time
• exact cooling steps (warm rinse first, cold later if used)
• base contact cooling conditions
• stop-start scenario if common on your line

The thick-bottom bottle often fails here if the base is being shocked by cold contact.

3) Stress inspection (polariscope) and thickness mapping

Run before and after simulations:

• polariscope at heel and base to detect residual stress differences
• thickness mapping at heel band, base corner, push-up ring
• crack origin mapping for any failures

When cracks do occur, confirming origin with a reference like the NIST fractography guide for ceramics and glasses ⁹ prevents “guess fixes” that add mass but keep the hinge.

4) Base-check monitoring and delayed inspection

Some base checks appear later. Add:

• inspection after cool-down
• inspection after 24 hours
• handling and vibration simulation if shipping is rough

Because scuffs accelerate crack growth at the heel and base corner, include surface protection checks (hot-end/cold-end) informed by commercial glass surface treatments and cold-end coatings ¹⁰.

A thick-bottom bottle should only be used for hot-fill when it passes the simulation with worst-case cooling and shows low base stress in polariscope checks.

Conclusion

Thick-bottom bottles are not automatically more resistant to temperature differentials. Smooth transitions, uniform thickness, and strong annealing often beat extra base mass. Validate with hot-fill simulation and base-focused stress testing.
